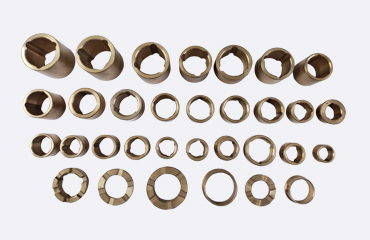

Submersible Pump Bushings LTB-4

Applications INDUSTRIAL: bearings, rail motor housings, pumps, industrial centrifuges, machine parts, low friction, moderate pressure bushings, railway applications, acid resistance applications, bearings for bearings covered for passenger cars, general service bearings for moderate pressures, rod wear material Bushings, wedge wear material, shoe wear material, pump impellers for acid mine water, pump bodies for acid mine water, bearings for freight wagons, bearings for coated bearings for locomotives MARINO: large bearings for ships.
Send Inquiry
  • Description
  • Technical Specification

features

The lead content in the IS:318 alloy is between 14 and 16 percent. Tin bronzes with high lead content are free cut and retain favorable thermal conductivity and good lubrication due to lead content.



Tin lead bronzes such as IS:318 are ideal for bearing applications where there could be a loss of the lubrication limit. These alloys have excellent performance in unforgiving environments where there may be foreign matter, such as dirt and other foreign materials.



Alloys with a high lead content can wrap foreign matter due to its malleable nature and, in doing so, protect the wear surface of a coupling part, such as a shaft.

Chemical composition

%
Cu
Nickel
P
Pb
Sn
Zn
Al
Fe
S
Sb
Others
Si

Min.

74

-

-

14

6,0

-

-

-

-

-

-

-

Max.

76

2.0

0,05

16

8.0

0,8

0,005

0.500

0,08

0,500

-

0,005

Chemical composition as per is:318
